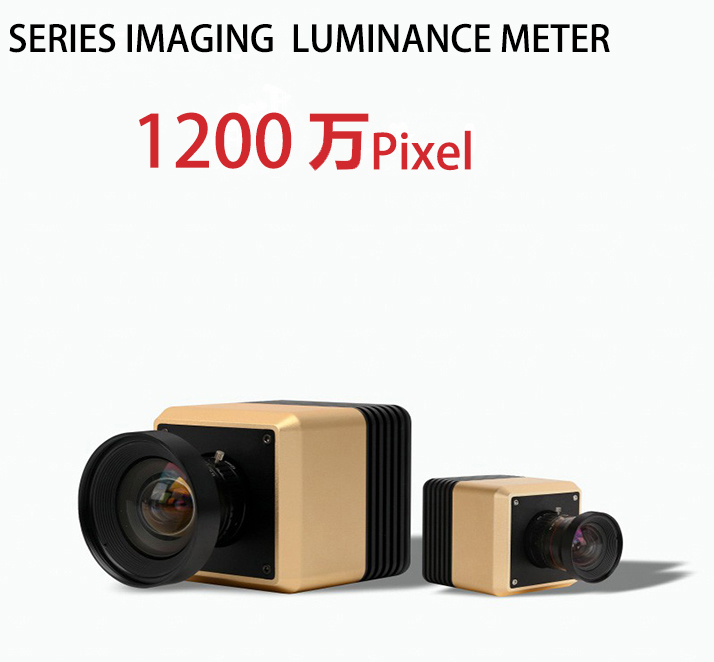

CX1200 SERIES IMAGING LUMINANCE METER
CX-1200 imaging type luminance meter includes LED lighting including lighting research. Street lamp road brightnesstest. light environment test， LED LCD display surface brightness analysis. etc. The test items include the brightness of any point on the image, within any range Parameter analysis functions such as the average value. maximum value.minimum value of brightness. and iso-brightness color map。
CX-1200 imaging photometer is used to measure the brightness, brightness distribution and uniformity of LED modules, lamps, lamps, displays, street brightness and other light sources.
Key Features:
1. Use CMoS image sensor and advanced v-lambda filter
2. It has a matrix of millions of detector points, which can capture the entire scene and measure the brightness of each point at the same time
3. Multiple points can be quickly measured in one operation
4. High resolution and high sensitivity
●Imaging resolution : 4096x3000
●Brightness measurement range : 0.01cd/m2-10000cd/m2
●Integration time: 1us~10s
●Dimensions (length x width x height) :100mm x96mmx 96mm
●PC connection : USB 3.0
●powered by : USB
